18w rotating tube
Product features

rotating  tube light 18w with qualified power driver for safety rule passport approval .

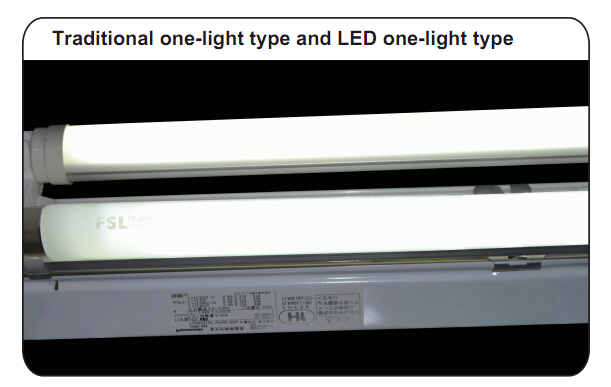

Retro-fit kits available for direct replacement of T8/T10/T12  fixtures.

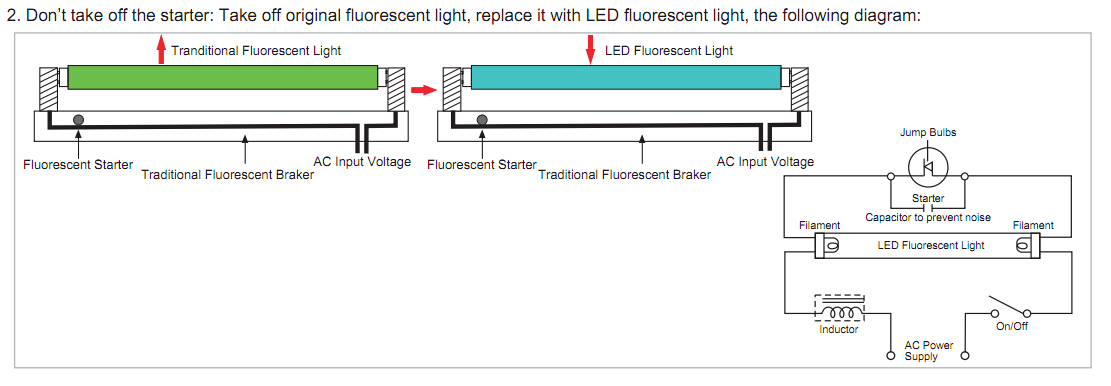

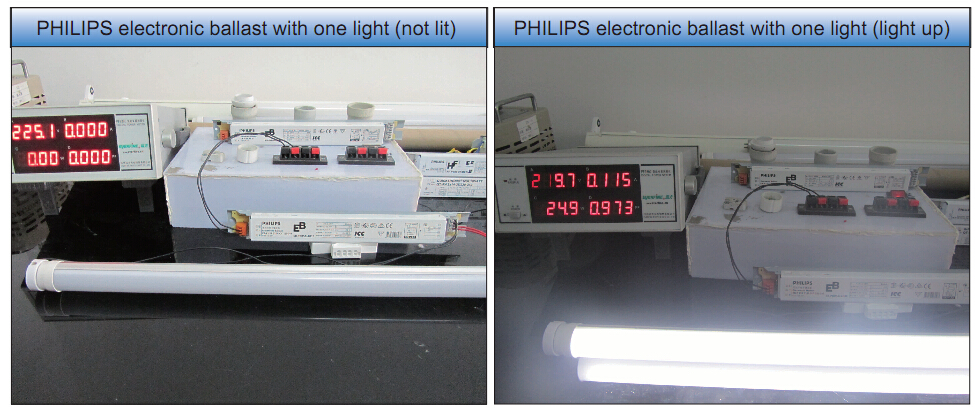

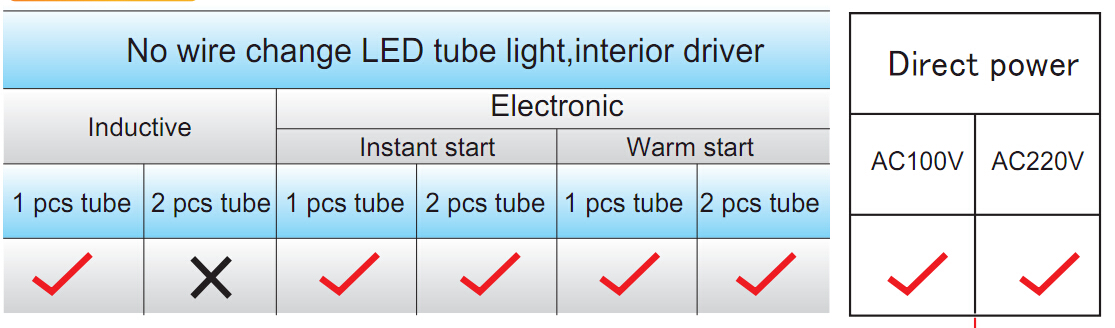

led tube is compatible for traditional inductive ballast or electronics ballast without wiring change while installation the led tube to tradtional fixtures brackets.

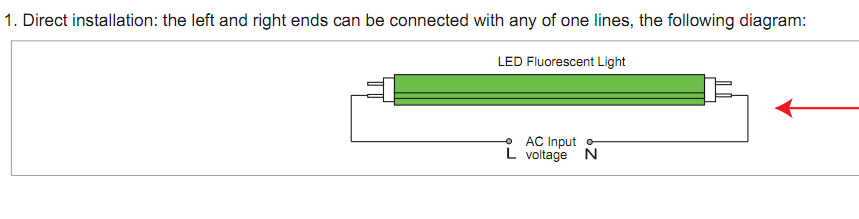

power voltage input with single end or double end for safty without shock .

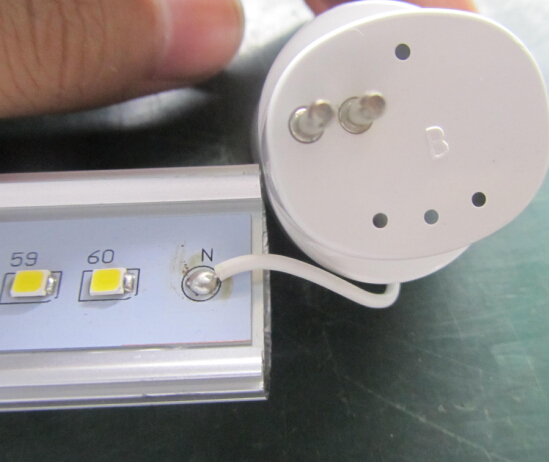

the rotating cap pins or non-rotating end cap is for your option .
the G13 base can be rotatable with 45 degree or 90 degree for your option.
 the frosted cover or transparent cover for your option .


Specifications

Power:

18-20W

Input   Voltage:

AC100-  240V/5060HZ

Luminous Flux:

2000--2100lm

Color Temp.

3000k --5500k

LED Source:

SMD2835

Chip type:

Epistar/ samsung

PF:

>90%

CRI:

82

Beam Angle:

180°

lighting lux @1 meter

 350--450lux

Operating Temp.

-20~+40°C

Storage Temp.

-40~+60°C

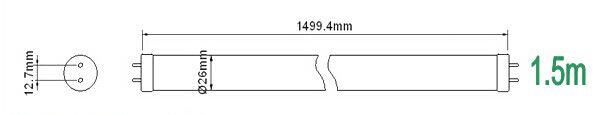

Dimension:

Dia.28*1500mm

Warranty:

2 years

Main Materials:

Aluminum as alloy and PC/PMMA as cover.

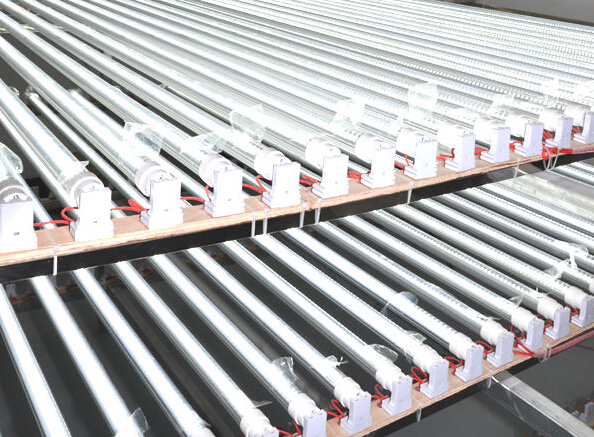

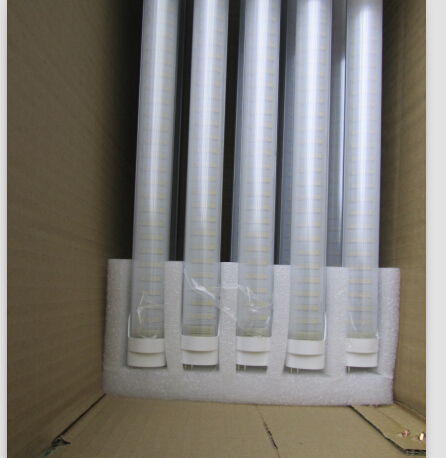

Product pictures
