300--500w linear bay
Product features

ligher reflection up to 92% on the reflector cover  .so as to reflect full  light to the ground lighting .

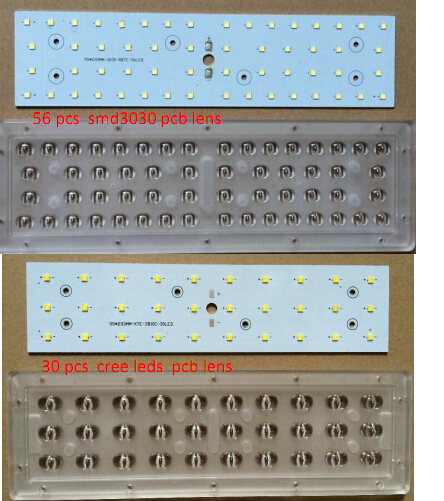

using smd3030  pc lens  and silicon rubber for strong waterproof IP65 outdoor usage .

more cooling fins in the back and heat pipe conduction  for fast heat dissipation.

suitable for COB leds or smd 3030 pcb  power  100--500w .
suitable for hbg driver or square driver inside  .
black or siliver or white color for heat sink body  .
the diamond reflector cover degree is 60/90 /120 degree for your option .
using heat copper pipe to conduct the heat from the chip PCB to the cooling fins rapidly fast .

Specifications
Input Voltage:100-240VAC 50/60Hz)
Rated Power: 50/100/150/200/250W/300/400/500w
IP Grade:IP65
Material: Aluminium cooling fins +heat pipe heatsink
lens  Angle reflector : 45 degree or 90 degree or 120 degree .
leds : bridgelluxe or citizen  COB 100wx1  or smd leds .
cob size :34x34mm  or bridgelux  cob .
body color :silver or black coating

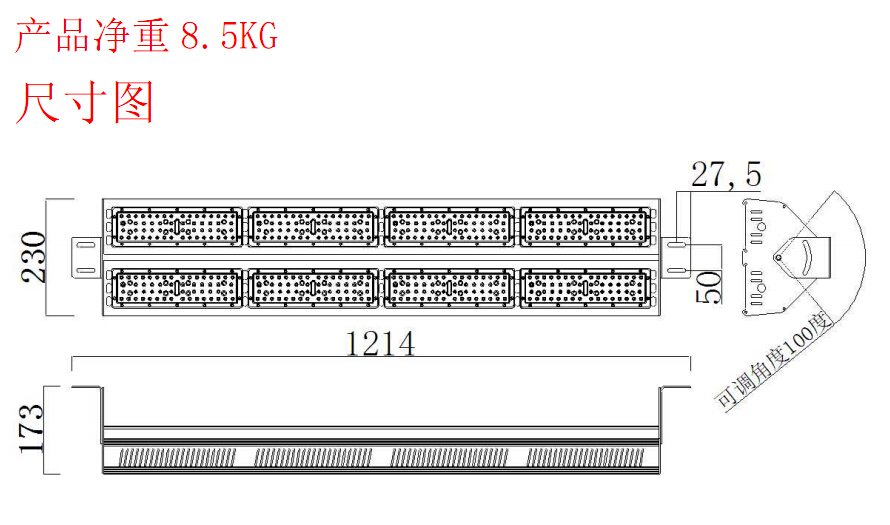

drawing :

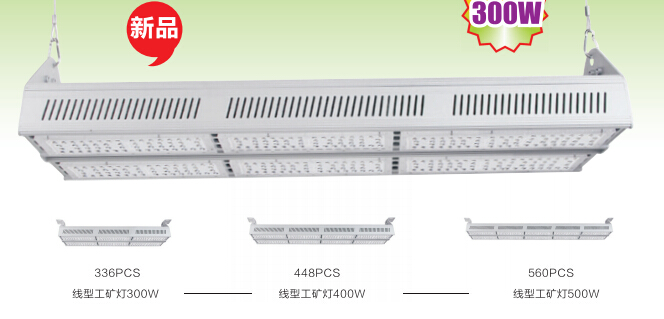

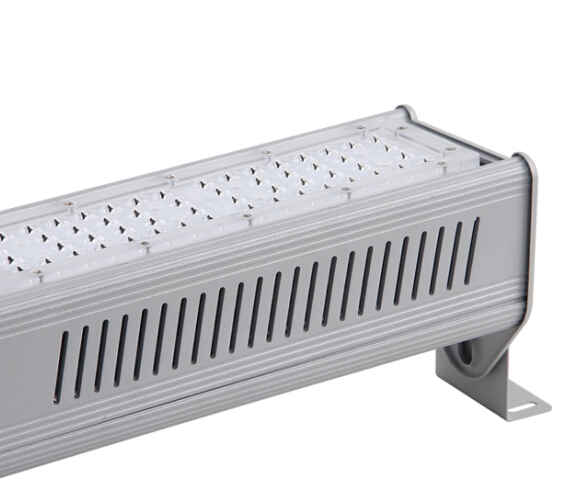

Product pictures
