LED tube T8-1500mm
Product features

 Retro-fit kits available for direct replacement of T8/T10/T12 fluorescent fixtures.

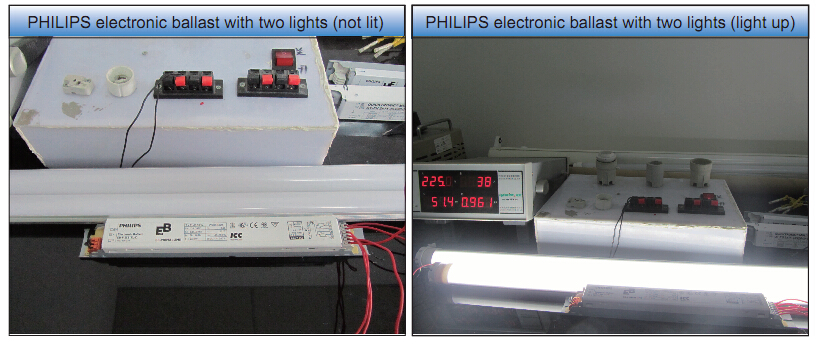

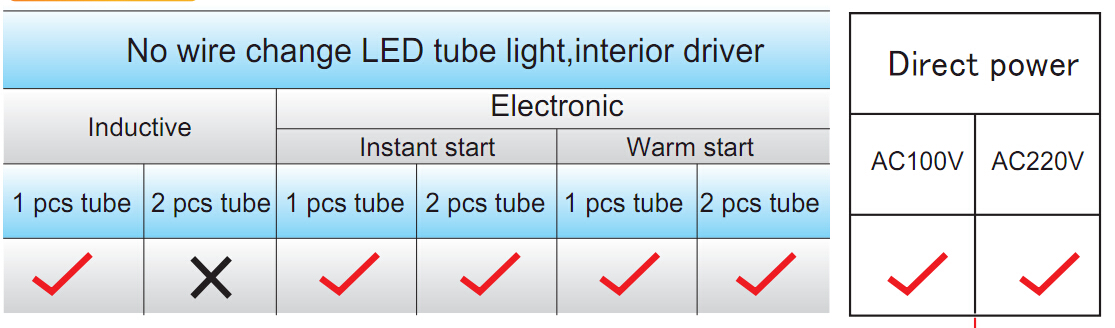

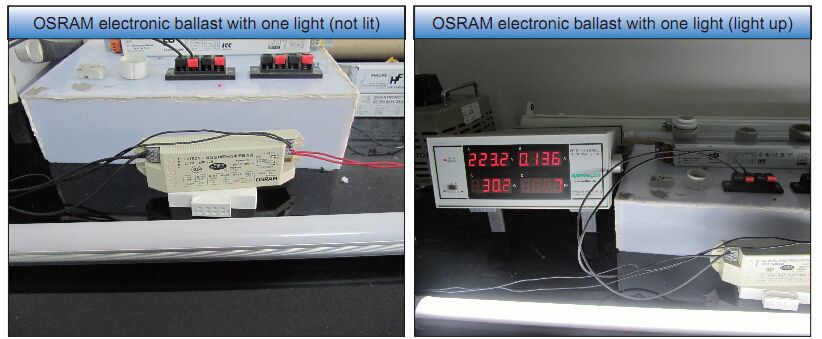

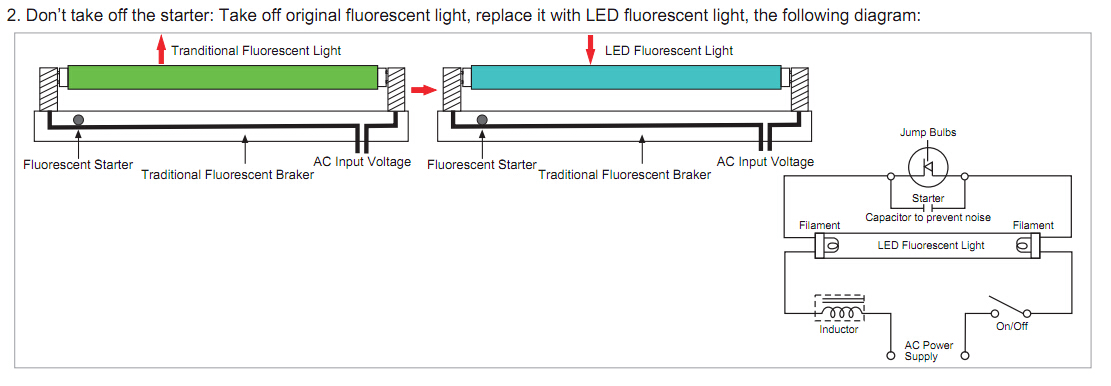

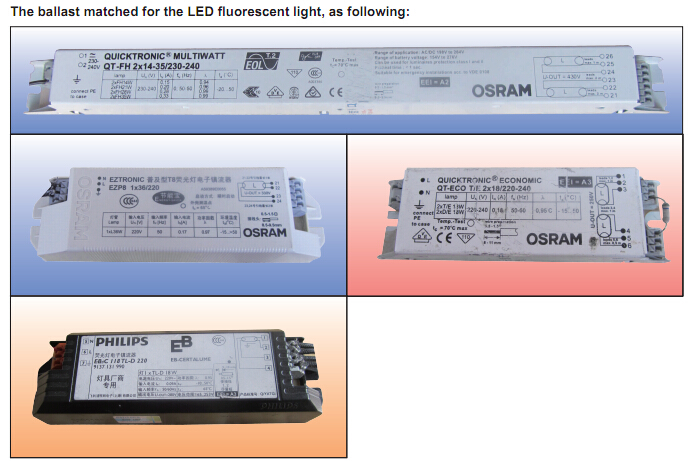

tube is compatible for traditional inductive ballast or electronics ballast without wiring change while installation the led tube to tradtional fixtures brackets.
25W T8 LED light   tube with isolated power driver for safety rule passport aproval .
single end or doulbe end input voltage without flickering and shock while working .
the G13 base can be rotatable with 180 degree or 90 degree for your option.
 can pass 3700v high voltage testing ;PF>0.9;
the fireproof of standard PC cover is real 94--v0 in thinner 1mm thick ,this lead to excellent light transmittance  up to 90% .
the frosted cover or transparent cover for your option .

Specifications

Power:

23-25W

Input   Voltage:

AC100-  240V/5060HZ

Luminous Flux:

2500--2600lm

Color Temp.

3000k --5500k

LED Source:

SMD2835

Chip type:

Epistar/samsung

PF:

>90%

CRI:

82

Beam Angle:

180°

lighting lux @1 meter

 710--770lux

OperatingTemp.

-20~+40°C

Storage Temp.

-40~+60°C

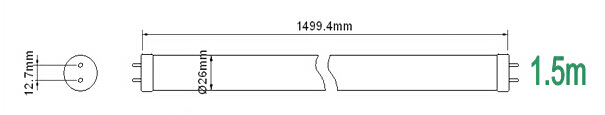

Dimension:

Dia.28*1500mm

Warranty:

2 years

Main Materials:
packing  :

Aluminum as alloy and PC/PMMA as cover.
25 pcs in a carton ,carton size1550x220x220mm , gross weight is 14.5kg.

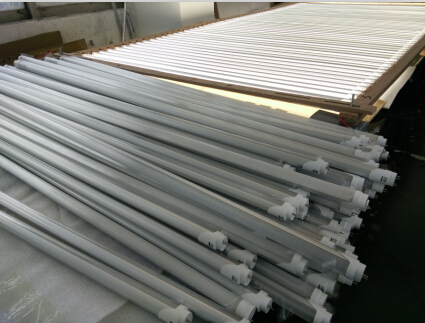

Product pictures
