Product Center
transparent cover -900mm
Product features

USE the transparent optic cover to generate more light brightness about 30% higher than the frosted cover ,especially used in cabinet backlighting or parking lot lighting and street signage lighting box .
One row LEDS compact design to generate linear-light output, NO dazzling and no glare light before your eyes ,that is genuine LED fluorescent tube . .
use high quality chipLEDS with Higher lumen output .
excellent PC half-transparent OPTIC cover  with aluminium body for shock and viberation resistance .

SAA  CB  CE  GS  VDA certified with isolated power driver , can pass 2500v high voltage testing .

Specifications

Power:

14-15W

Input   Voltage:

AC100-  240V/5060HZ

Luminous Flux:

1500--1600lm

Color Temp.

3000k --5500k

LED Source:

SMD2835

Chip type:

Epistar/samsung

PF:

>90%

CRI:

82

Beam Angle:

180°

lighting lux @1 meter

 710--770lux

OperatingTemp.

-20~+40°C

Storage Temp.

-40~+60°C

Dimension:

Dia.28*900mm

Warranty:

2 years

Main Materials:
packing  :

Aluminum as alloy and PC/PMMA as cover.
25 pcs in a carton ,carton size950x220x220mm , gross weight is 9.5kg.

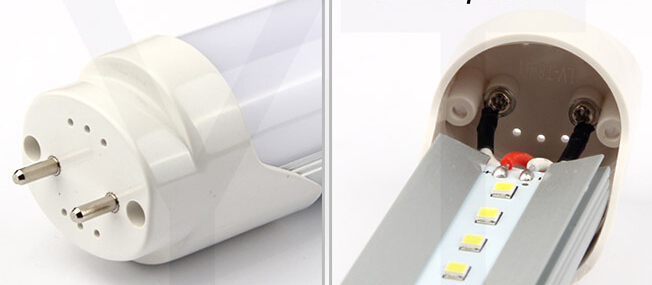

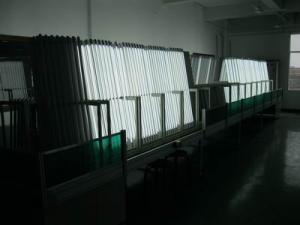

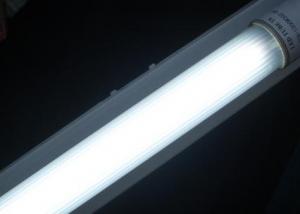

Product pictures
