10w rotating 90/180dgree
Product features

T8 LED  tube lamp 10w with isolated power driver for safety rule passport approval .

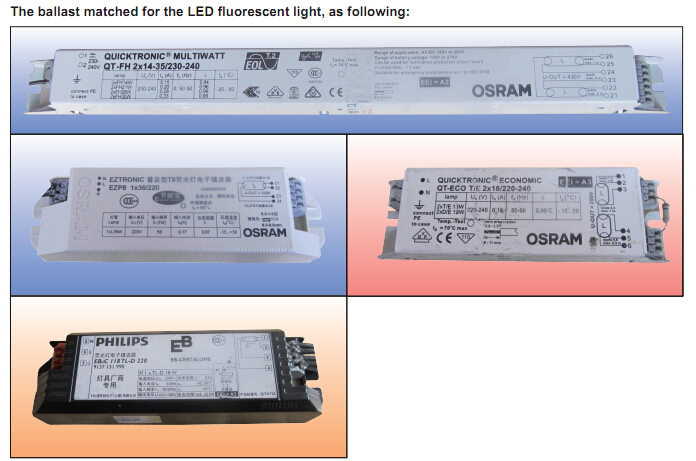

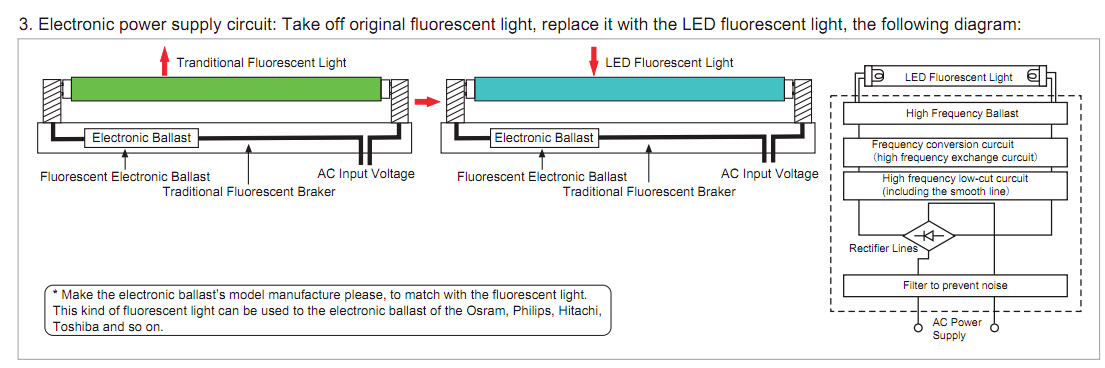

led tube is compatible for traditional inductive ballast or electronics ballast without wiring change while installation the led tube to tradtional fixtures brackets.
power voltage input with single end or double end for safty without shock .
the G13 base can be rotatable with 45 degree or 90 degree for option.
can pass 3700v high voltage testing ;PF>0.9;

SAA  CE  CB  ETL GS  standards certified .lifespan not less than 50000 hours .

the frosted cover or transparent cover for your option

Specifications

Power:

9-10W

Input   Voltage:

AC100-  240V/5060HZ

Luminous Flux:

1000--1100lm

Color Temp.

3000k --5500k

LED Source:

SMD2835

Chip type:

Epistar/ samsung

PF:

>90%

CRI:

82

Beam Angle:

180°

lighting lux @1 meter

 240--270lux

OperatingTemp.

-20~+40°C

Storage Temp.

-40~+60°C

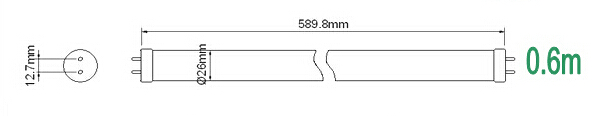

Dimension:

Dia.28*600mm

Warranty:

2 years

Main Materials:
packing  :

Aluminum as alloy and PC/PMMA as cover.
50 pcs in a carton ,carton size630x220x220mm , gross weight is 12.5kg.

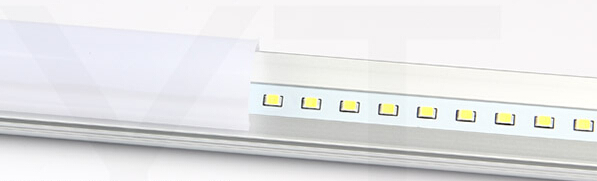

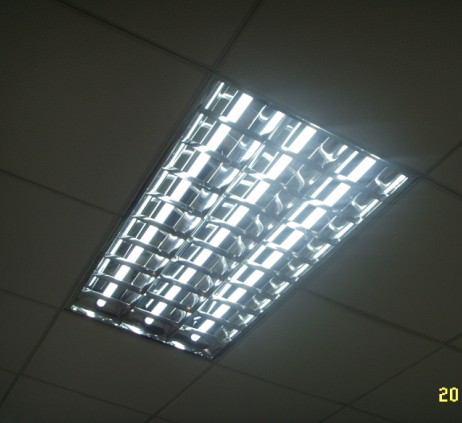

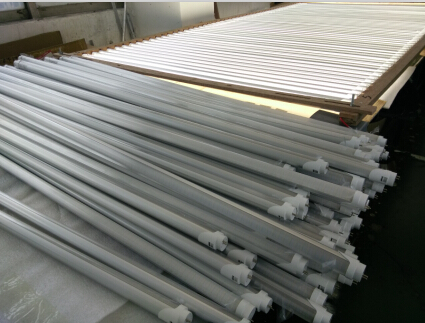

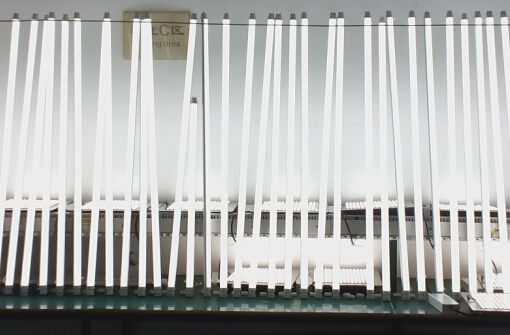

Product pictures
