70/80w heatpipe housing
Product features

higher reflection up to 92% on the reflector cover  .so as to reflect full  light to the ground lighting .

using cob pc lens  and silicon rubber for strong waterproof IP65 outdoor usage .

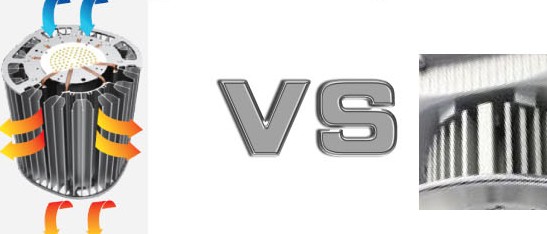

more cooling fins in the back for fast heat dissipation to delay long life of leds quality .

suitable for COB leds 30w--200w .
easy to install the leds by the bracket fastly .

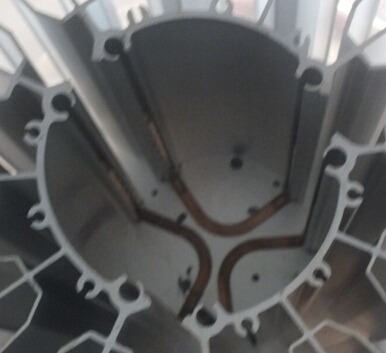

using heat copper pipe to conduct the heat from the chip PCB to the cooling fins rapidly fast .

Specifications
Input Voltage:100-240VAC 50/60Hz)
Rated Power: 70/80W
Power efficiency:≥0.9
IP Grade:IP65
Material: Aluminium cooling fins +heat pipe heatsink

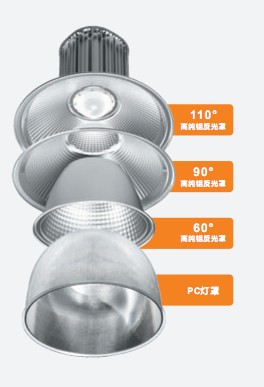

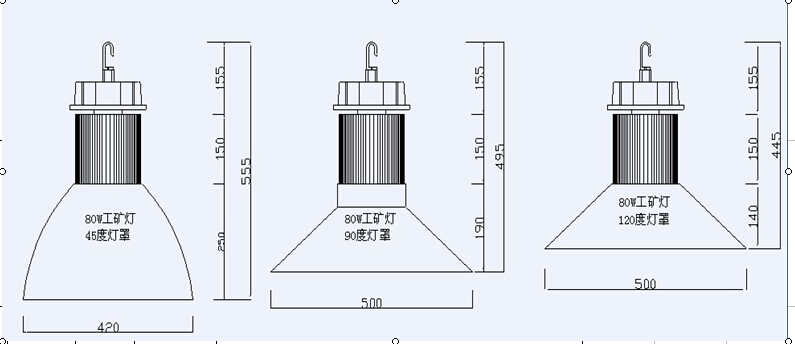

Ream Angle reflector : 45 degree or 90 degree or 120 degree .
CCT :WW(3000K)/NW(4000K)/PW(6000K)
CRI:WW:Ra80/NW:Ra80/PW:Ra75
Lumen:WW:720LM/NW:7750LM/PW:8000LM
leds : bridgelluxe or citizen  COB 80wx1  or smd leds c

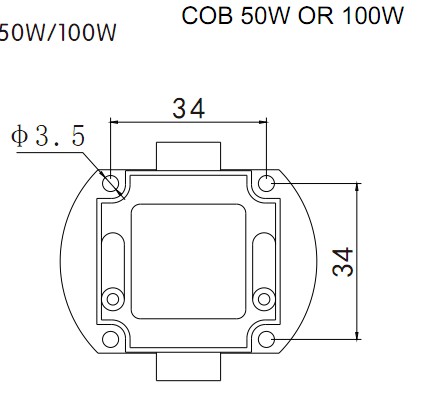

cob size :34x34mm  or bridgelux  cob .

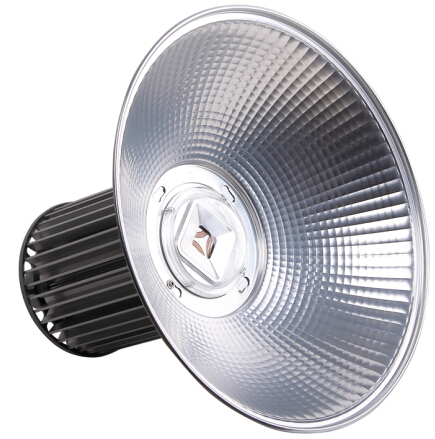

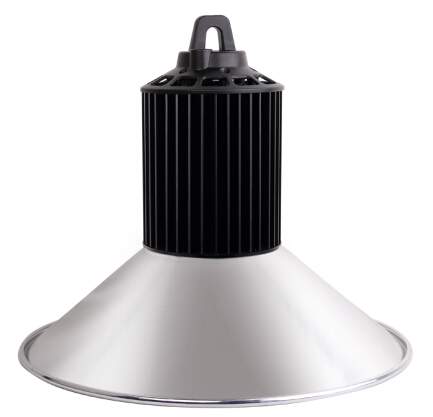

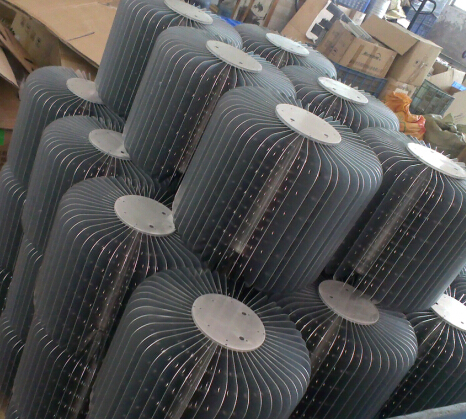

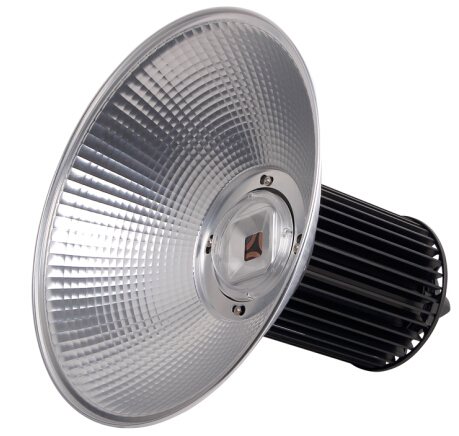

Product pictures
