60-100w low bay housing
Product features

igher reflection up to 92% on the reflector cover  .so as to reflect full  light to the ground lighting .

using tempered glass  silicon rubber for strong waterproof IP67 outdoor usage .

more cooling fins in the back and heat pipe conduction  for fast heat dissipation.

suitable for COB leds or smd 3030 pcb  power  60w--200w .

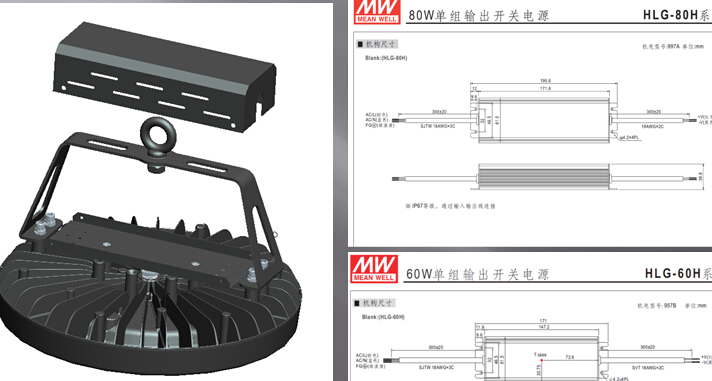

suitable for hbg driver or square driver inside  .
black or siliver or white color for heat sink body  .
the diamond reflector cover degree is 60/90 /120 degree for your option .
using heat copper pipe to conduct the heat from the chip PCB to the cooling fins rapidly fast .

Specifications
Input Voltage:100-240VAC 50/60Hz)
Rated Power: 60-200W
Power efficiency:≥0.9
IP Grade:IP65
Material: Aluminium cooling fins +heat pipe heatsink
Ream Angle reflector : 45 degree or 90 degree or 120 degree .
CCT :WW(3000K)/NW(4000K)/PW(6000K)
CRI:WW:Ra80/NW:Ra80/PW:Ra75
Lumen:WW:28250LM/NW:16750LM/PW:29500LM
leds : bridgelluxe or citizen  COB 100wx4 or smd leds c
cob size :34x34mm  or bridgelux  cob 50wx4

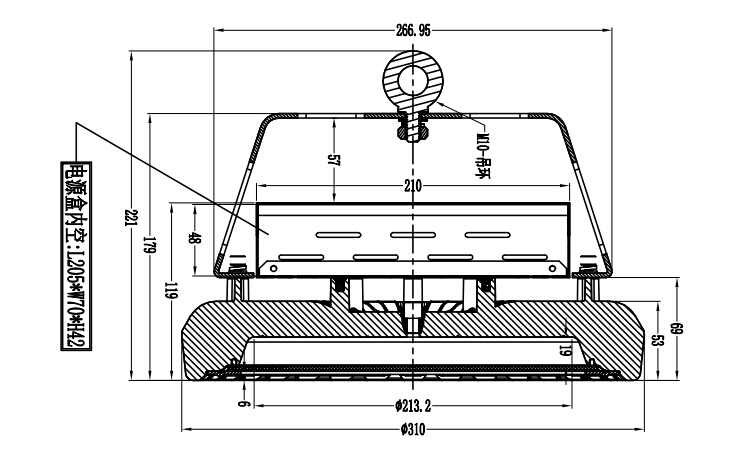

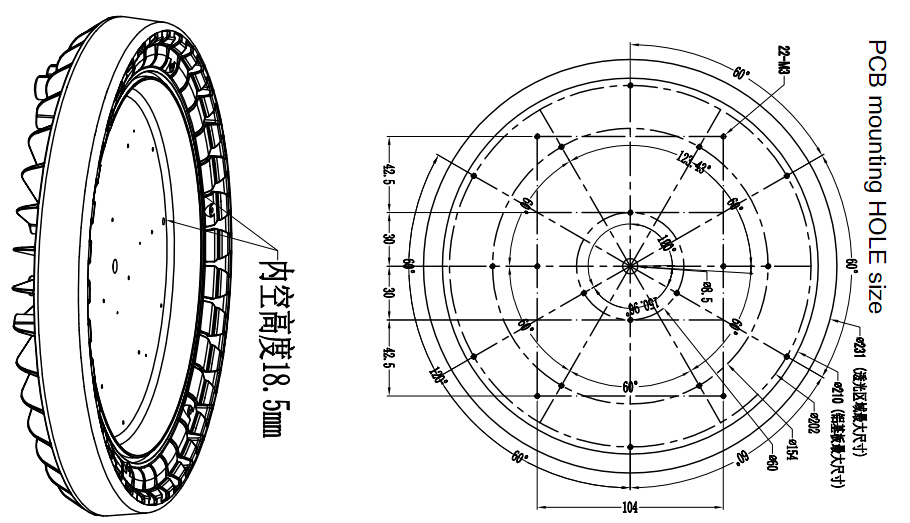

60--100w  housing drawing :

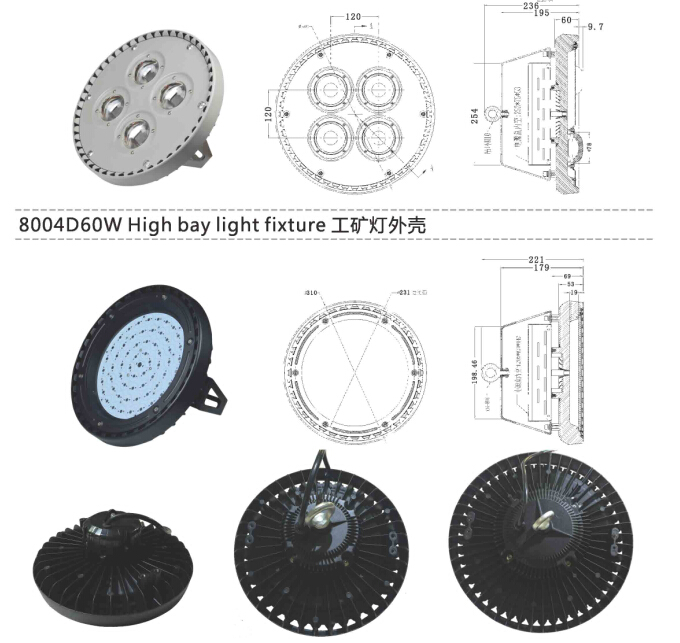

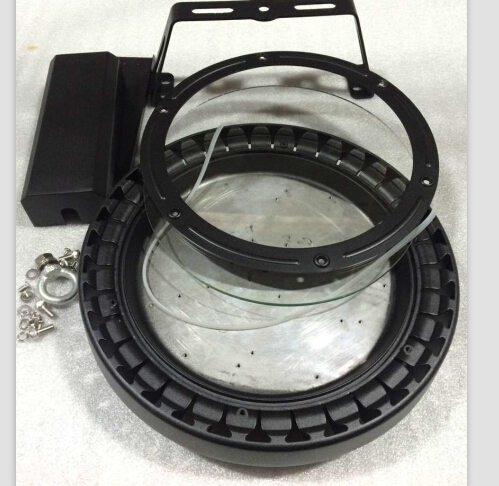

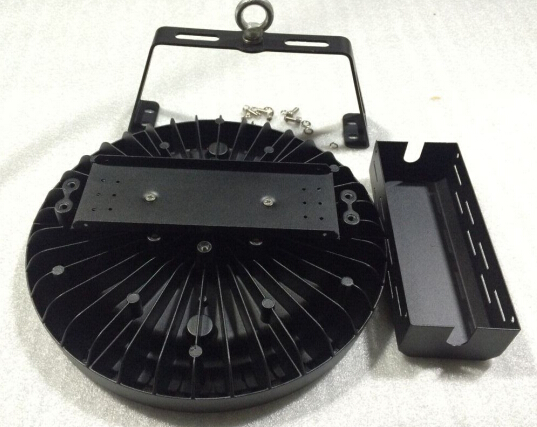

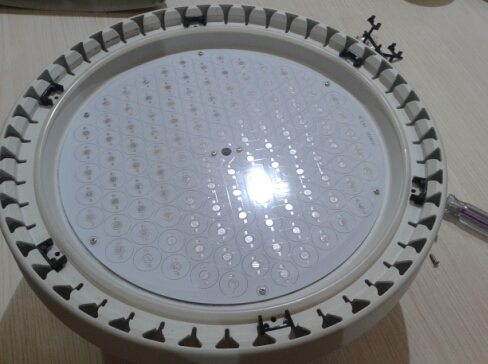

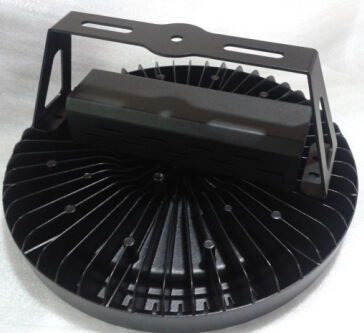

Product pictures
