Product Center
200w square bay housing
Product features

high quality ad12 diecasting aluminum rounnd UFO bay housing parts ..

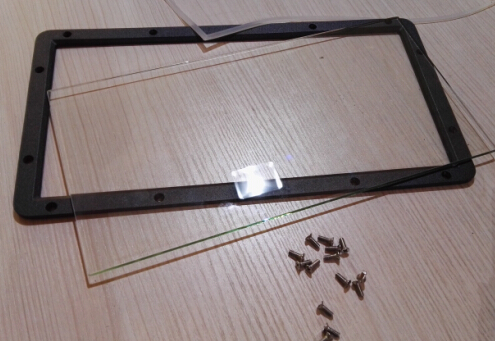

using tempered glass   and silicon rubber for strong waterproof Ip67  outdoor usage .

more cooling fins in the back and heat pipe conduction  for fast heat dissipation.

suitable for COB leds or smd 3030 pcb  power  100w--250w .
suitable for hbg driver or square driver inside  .
black or siliver or white color for heat sink body  .
the diamond reflector cover degree is 60/90 /120 degree for your option .
using heat copper pipe to conduct the heat from the chip PCB to the cooling fins rapidly fast .

Specifications
Input Voltage:100-240VAC 50/60Hz)
Rated Power: 100-260W
Power efficiency:≥0.9
IP Grade:IP65
Material: Aluminium cooling fins +die casting  heatsink
Ream Angle reflector : 45 degree or 90 degree or 120 degree .
CCT :WW(3000K)/NW(4000K)/PW(6000K)
CRI:WW:Ra80/NW:Ra80/PW:Ra75
Lumen:WW:18250LM/NW:16750LM/PW:19500LM
leds : bridgelluxe or citizen  COB 100wx2 or smd leds c
cob size :34x34mm  or bridgelux  cob 50wx4

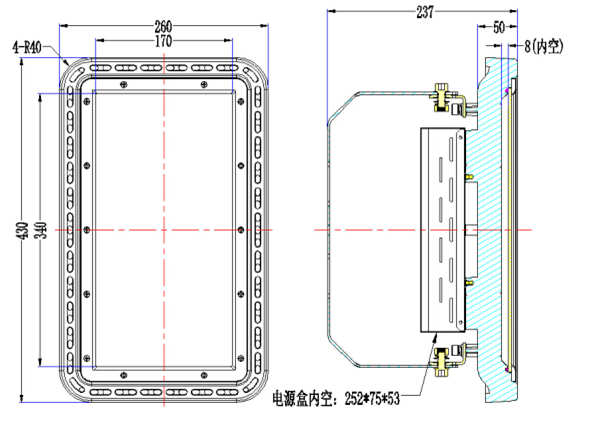

drawing :

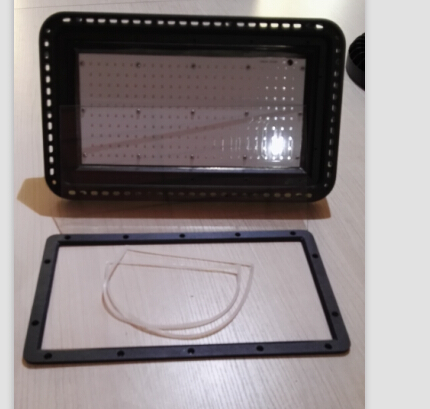

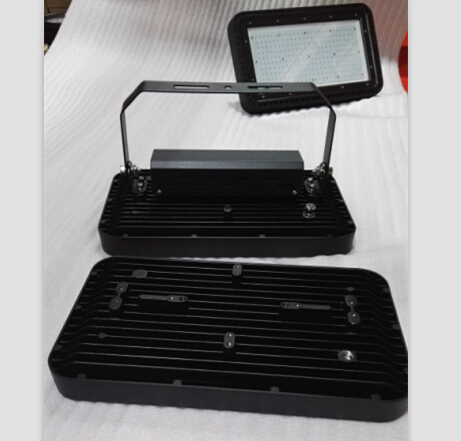

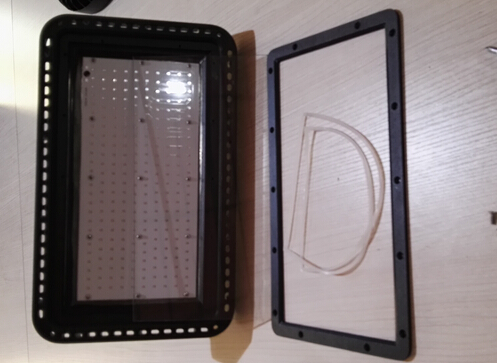

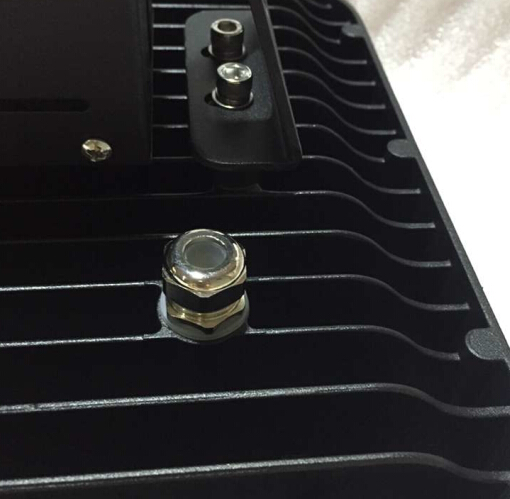

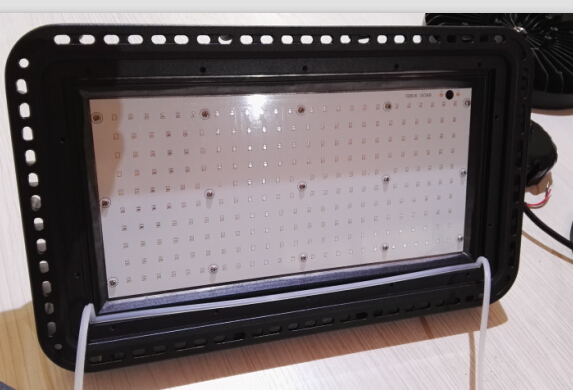

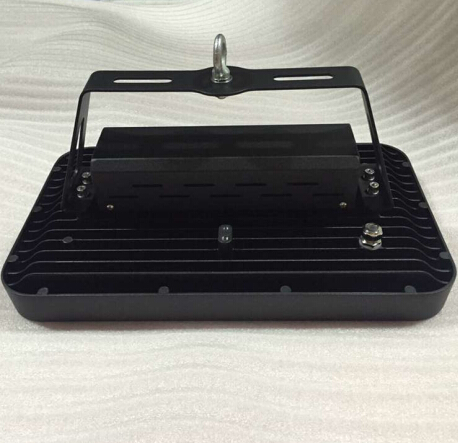

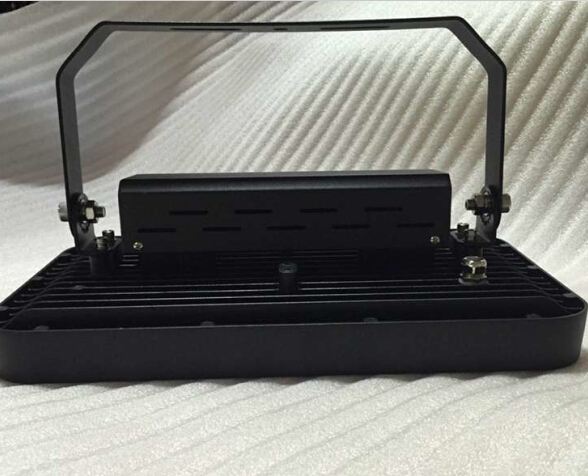

Product pictures
