60w street housing
Product features
Tri-proof for waterproof.dust-proof and wind-resistant outdoor IP65 standard.

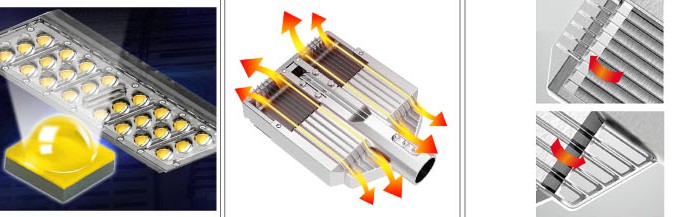

     Special cooling fin heatsinks and copper pipe inside to conduct the heat eifficiently and fastly .

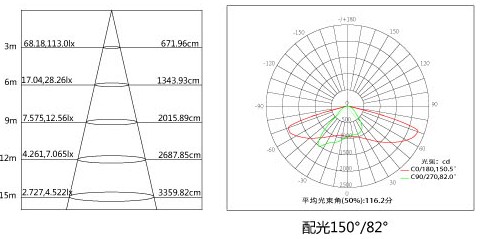

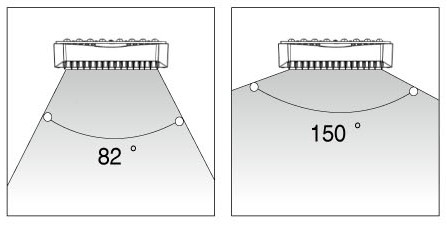

     Wide beam angle reflector lens with 80x160dgree for cree leds and 75x155 for lumileds .

    Modular design with lower maintenance and high lumen output 90--100lm/w.

    each module pawer  can be made 30--50w for our best heatsink disspation .

    CE  ROHS FCC  EMC PASSED

Specifications

power :60--90w
voltage: 36v  design
current :1800 ma
led chip : cree leds or lumileds
led quanity; 48pcs .
way of led series and paralle : 4p12s

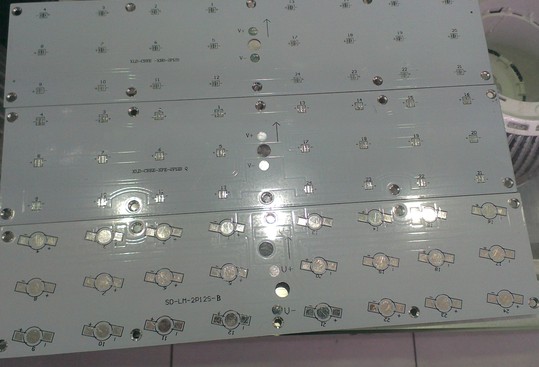

PCB size :260x61x1.5mm
driver : recommended meanwell dirver or similar quality.

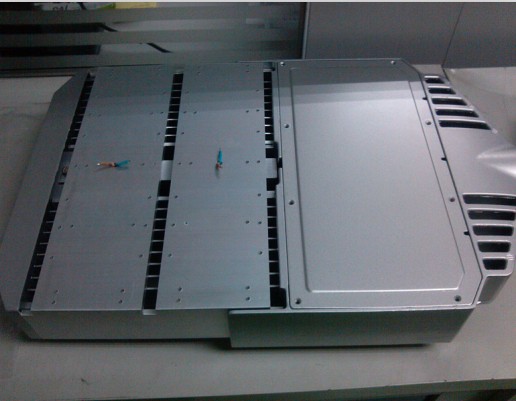

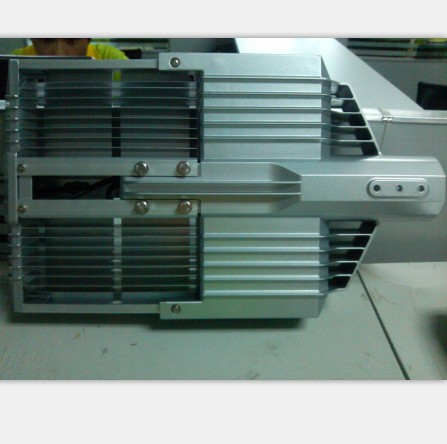

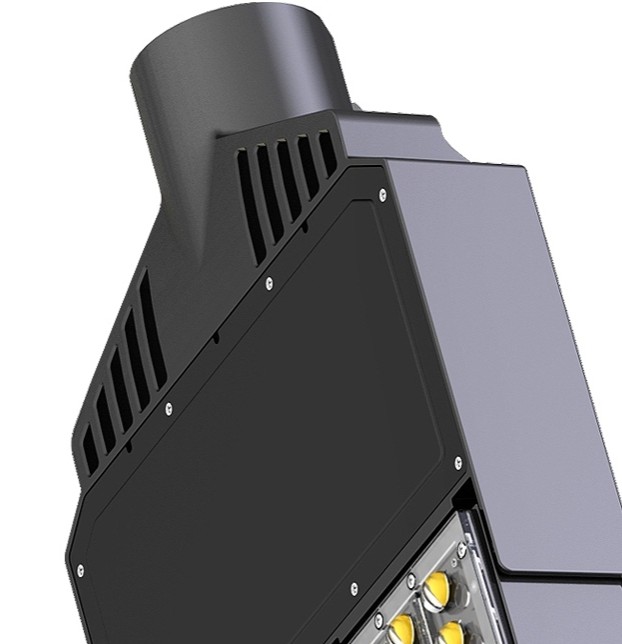

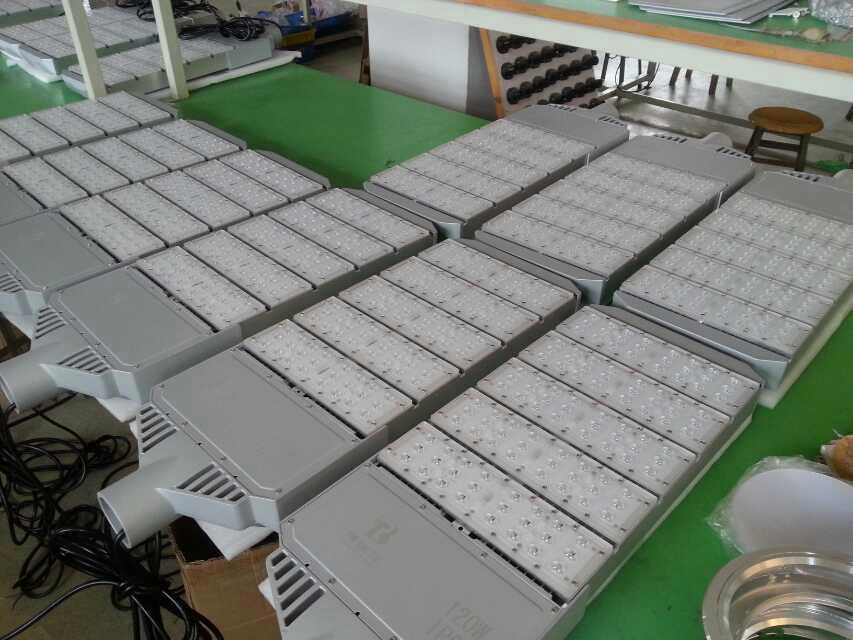

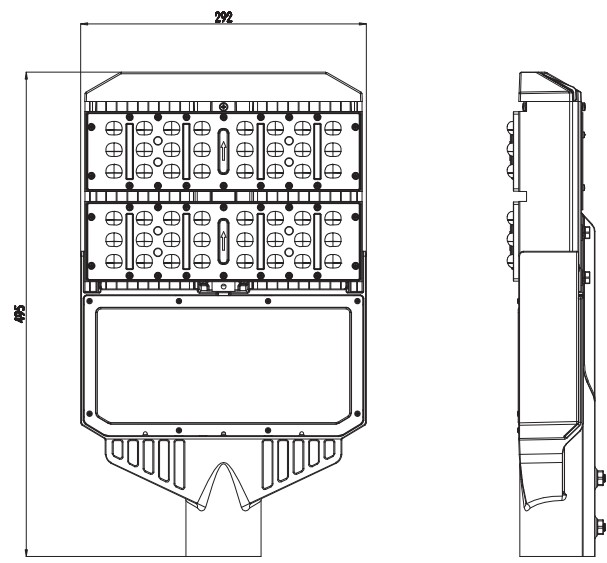

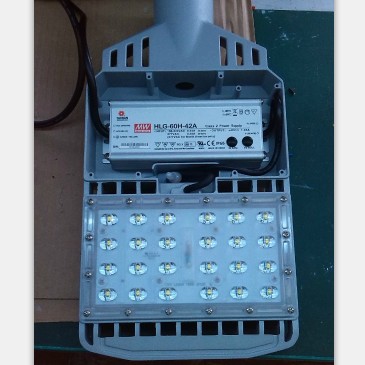

Product pictures
