Product Center
500w flood lighting
Product features

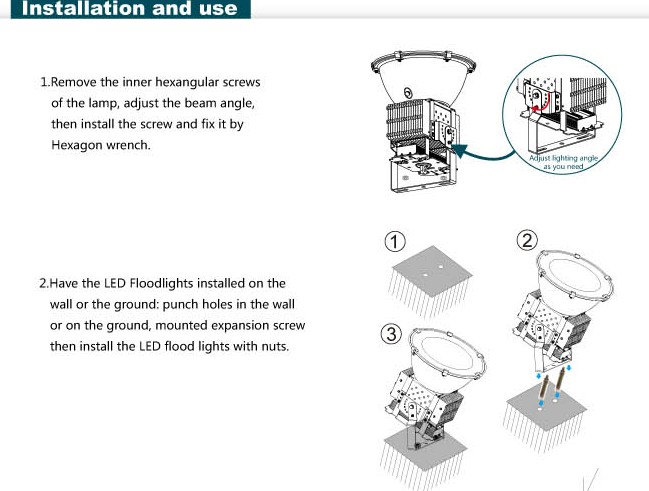

the adjustable angle 216 dgree be suitable for installation in any angle directions .

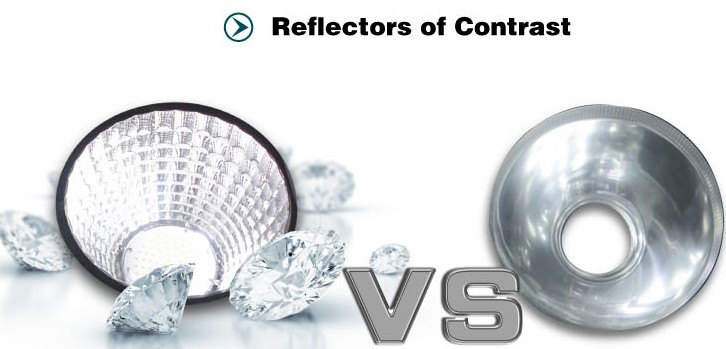

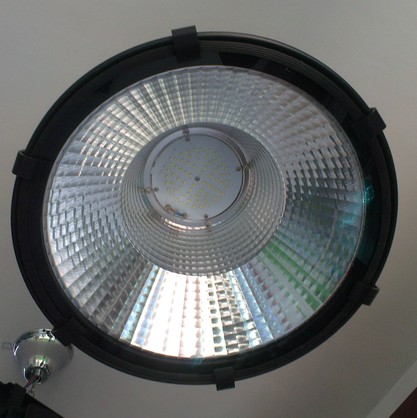

higher reflection rate up to 92% on the reflector cover  .so as to reflect full whole light to the ground lighting .

more cooling fins in the back for fast heat dissipation to delay long life of leds quality .

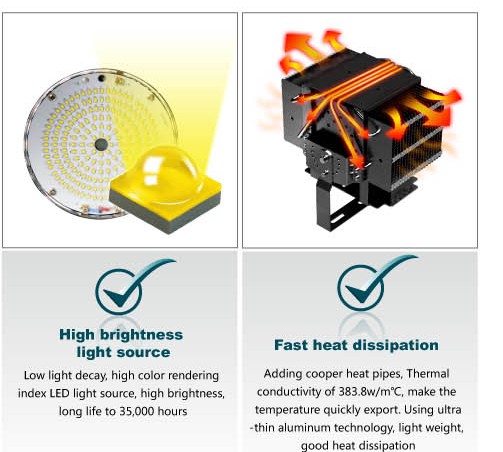

using heat copper pipe to conduct the heat from the chip PCB to the cooling fins rapidly fast ,so  the chip temperature is extremely lower  , effectively improve the chip antioxidant function, long lifespan, pure color.
cree led and meanwell driver with 3 year warranty .

 suitable for  wall lighting , stadium, square, park, high pole lighting , avenue scenic spots  ,sports stadium and lanscape flood lighting and other occasions.


Specifications

Rated Voltage (VAC/Hz)

100~240VAC / 50~60 Hz

Wattage (W)

500W

Power Factor (PF)

>0.90

Lumen(Lm)

29000-36000Lm

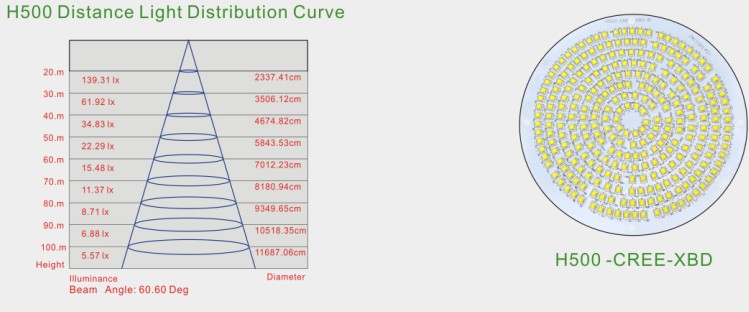

Beam Angle (D40)

>60°

Flux(Lux)@5M

2250Lux

Lifespan (hrs) @25°C

40,000hrs *

materaial

pure aluminium heatsink

reflector beam

25/45/60/90/110 degree

N.W.(g)

color temp-k

leds
driver

14500g

2700k/4000k/5000k

creee
meanwell driver

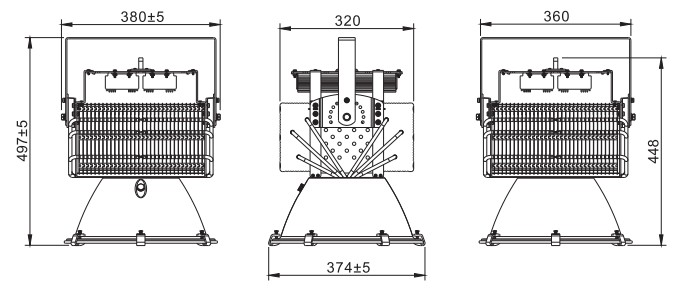

Product pictures
