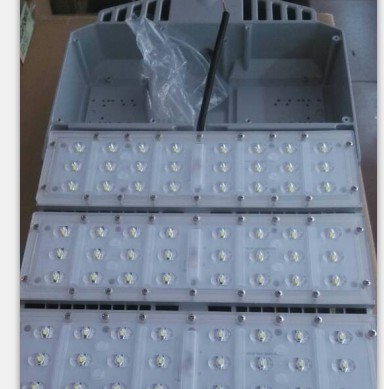

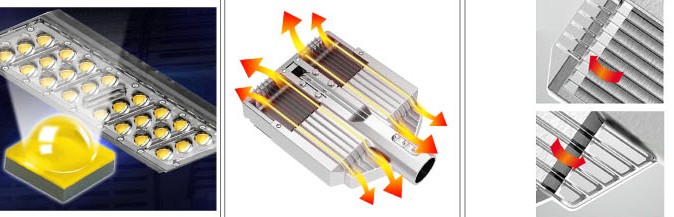

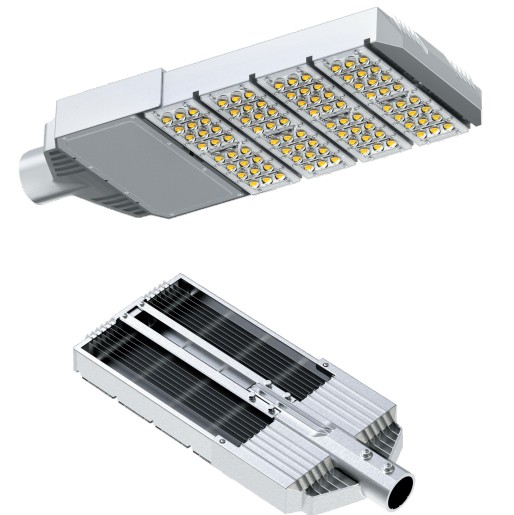

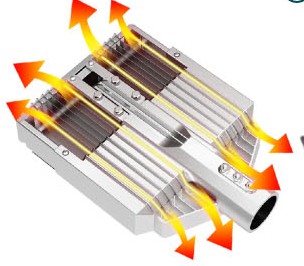

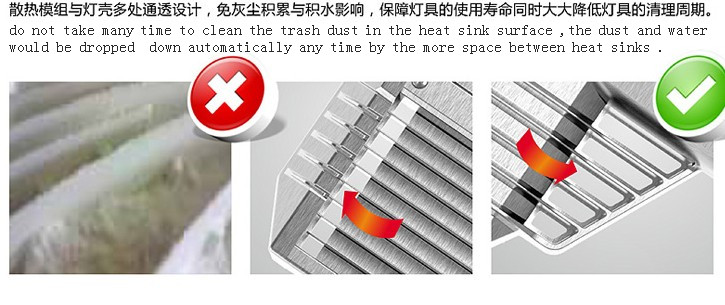

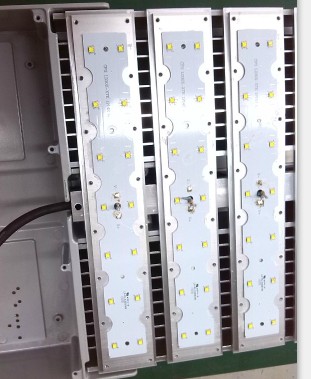

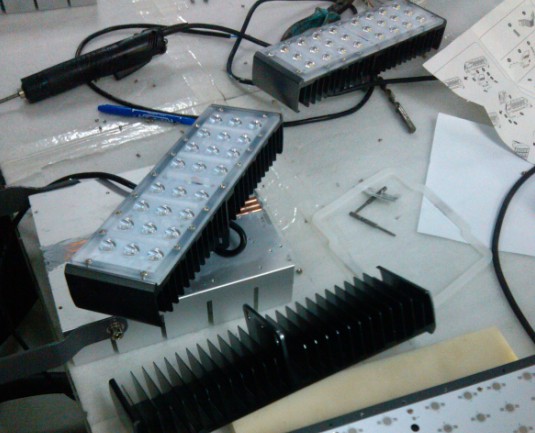

Tri-proof for waterproof.dust-proof and wind-resistant outdoor IP65 standard. ◆ Special cooling fin heatsinks and copper pipe inside to conduct the heat eifficiently and fastly . ◆ Wide beam angle reflector lens with 80x160dgree for cree leds and 75x155 for lumileds . ◆ Using meanwell high quality driver with 3 or 5 years warranty . ◆ Modular design with lower maintenance and high lumen output 90--100lm/w. ◆ Universal wide input voltage DC12V/24V and 85—240v for your option on solar street light . ◆ each module can be the power from 30---50w range with 24 pcs leds . |
Model |
GRSL150 |
GRSL180 |
||
CRI |
80 |
78 |
80 |
78 |
Power— w |
150W |
150W |
180 |
180 |
CCT K |
2500--3000 K |
5500--6000K |
2800--3300 K |
5500--6000K |
Lumen (lm) |
13000/14500 |
15900/16880 |
||
Efficiency |
90-100 lm/w |
90-100lm/w |
||
LED |
96 PCS CREE |
96 PCS |
||
Led and driver |
Cree led and meanwell driver |
|||
PF |
>0.95 |
|||
voltage |
DC12V /24V ,85—277V.50~60hz |
|||
Material |
Aluminium alloy heat sink |
|||

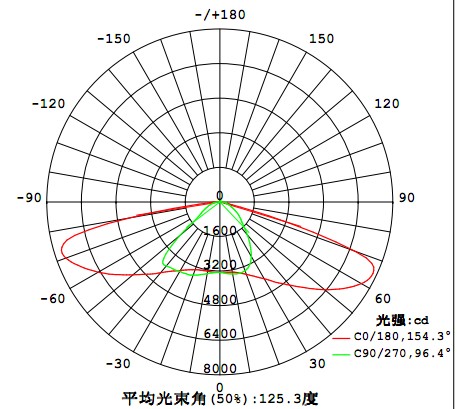

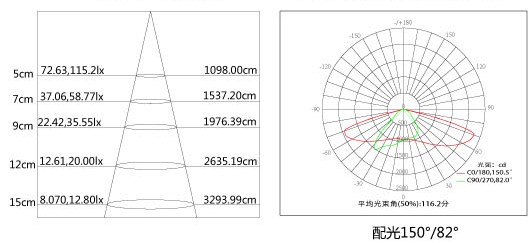

Beam angle Light beam |
Horizontal 160dgree ,vertical 80degree Asymmetric , rectangular beam |
|||
Working temperature: Working humidity |
10%~90%. |
|||

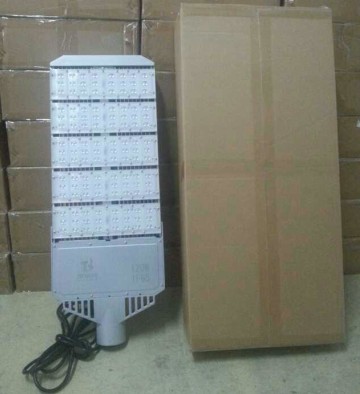

Packing |
1pcs/Carton , carton Size:78x39x |
|||
