Product Center
cct adjsutable panel 6030
Product features
   1)  new ultra thin 10mm color temerature adjustable 60x60cm aluminium led ceiling panel light  housing  .

   2) special design for PCB circuit on led groups working ,any one leds is defected can not influence any other leds working

   3)using high quality PMMA acrylic plate from MITSUBISHI company  with higher 96% light transmiting .

   4) color temp is adjustabel from 2400k to 6500k  and also with brightness dimmable

   5) special design is IP52 waterproof  suitable on the moisture environments space .

   6) the CCT and brightness can be adustable by the smart controller easily .

   7) Beautiful design, long lifespan and good heat dissipation

   8) CE, ROHS, FCC and TUV are approved

Specifications


LED Type

Epistar SMD3014

model

pl6060RG

Power

42w

Voltage

AC100-240V/DC24V

Size

600*600*10mm

Beam Angle

120 degree

Temperature

-20°C to 40°C

Color

2400k~6000k

PF

0.95

Luminous

2600--2900Lm

Material

Aluminum Alloy+Acrylic PMMA plate

Life Span

More Than 50,000 Hours

Certificates

CE RoHs

Warranty

3 Years

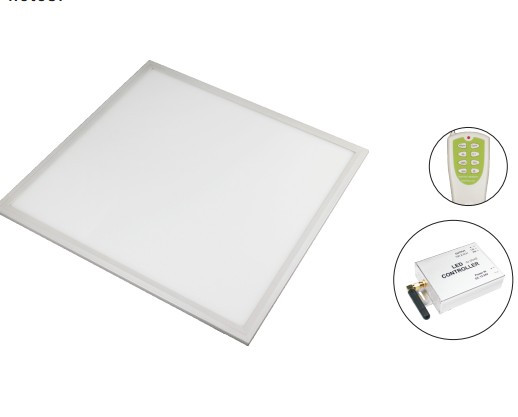

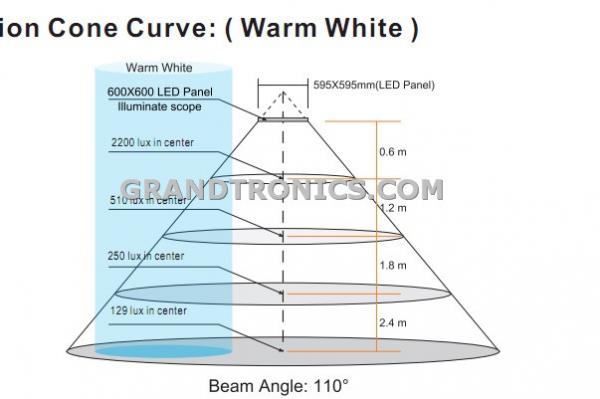

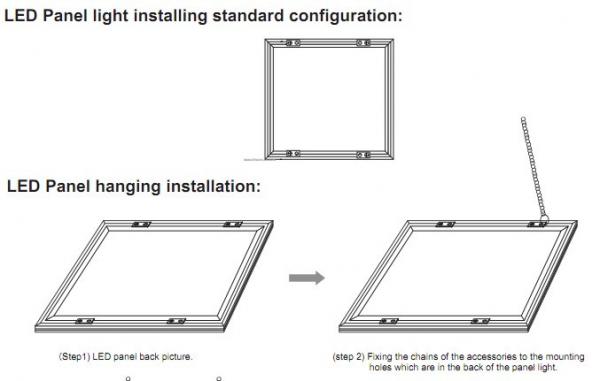

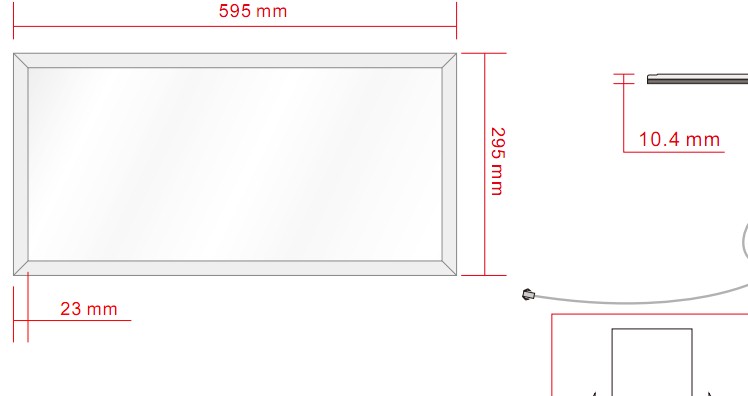

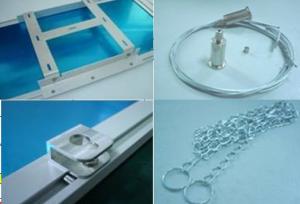

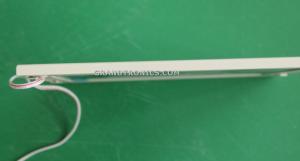

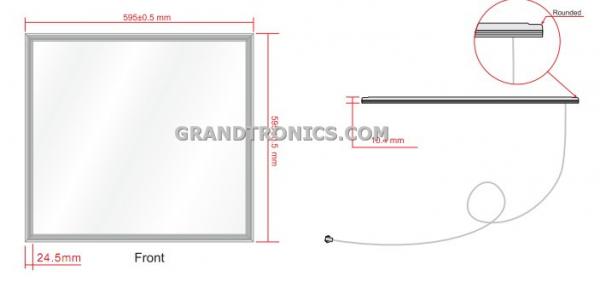

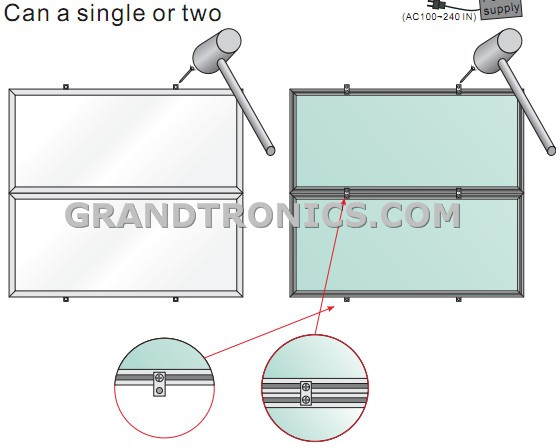

Product pictures
